Desktop Computer Mainboard Gaming Motherboard LGA 775 Solid Board Support LGA775 771CPU

Features:
– Small size and easy to install.
– Both CPU 771 and 775 are supported.
– Supports SPP, EPP and ECP modes.
– Professional design is your best choice.

Specifications:
material: metal
Front bus: 533/800/1066 MHz
Chipset: Intel g31 / g33 / G35 / Q35 and other chipsets (Northbridge) ICH for Intel chipset (South Bridge)
Memory support: DDR2 / 533/667/800 SDRAM (4GB) 2 DDR2 DIMM slots
Network: Support Realtek RTL8105E and other 100/10 MB / S.
Audio: Realtek ALC integrated chip with flexible 5.1 channel audio output
IDE: Support 1 IDE Ultra DMA66 / 100 via ICH7
STAT: Support 2 SATA ports via ICH7
Floppy disk: no
Rear panel: 1 parallel port supports SPP / EPP / ECP mode
1 PS / 2 mouse port, 1 PS / 2 keyboard port
1 serial port (COM1) 1 VGA port
2 x 4 USB ports, 1 network outlet, 3 flexible audio outlets
Pin board/interface: 1~2 USB2.0 pins 1 network interface 1 front panel audio pin
Slot: 1 PCI Express x16 slot, 1 2 PCI slot (compatible with 3.3 V / 5 V PCI bus interface)

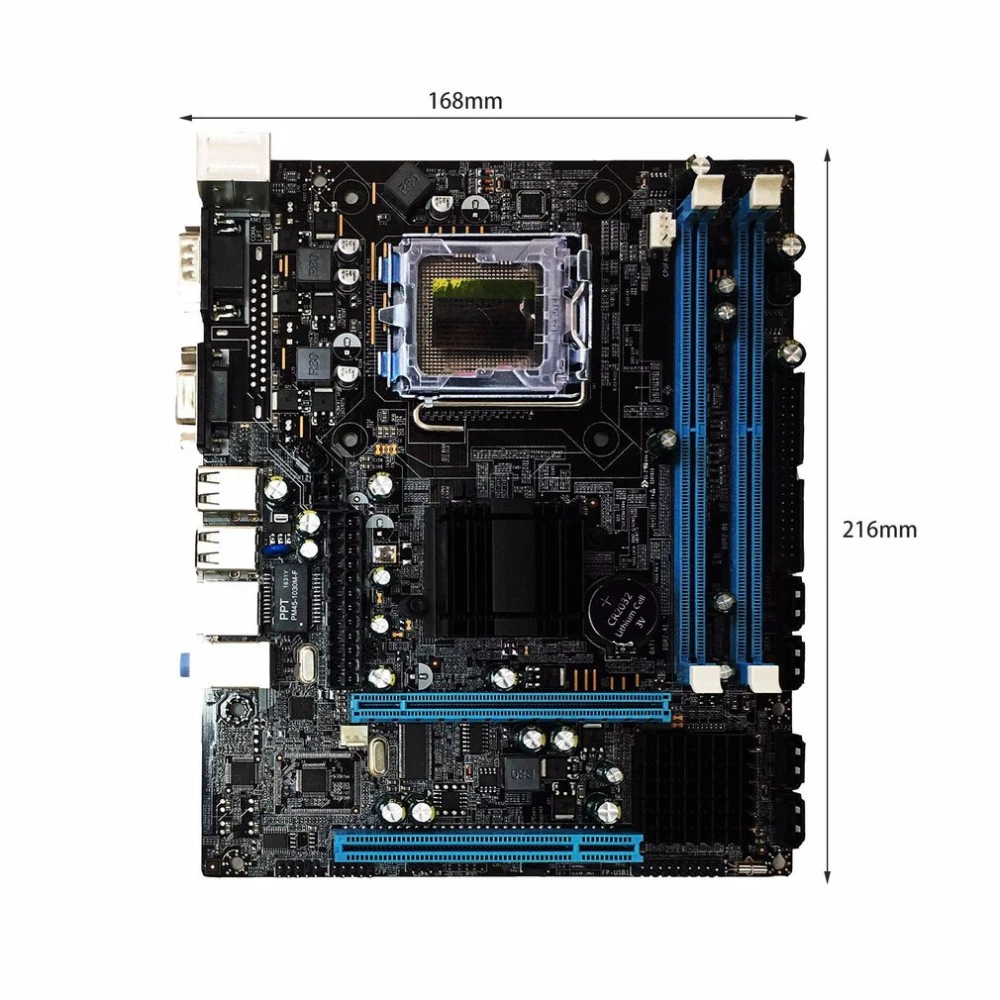

Fixing hole: 6 fixing screw holes

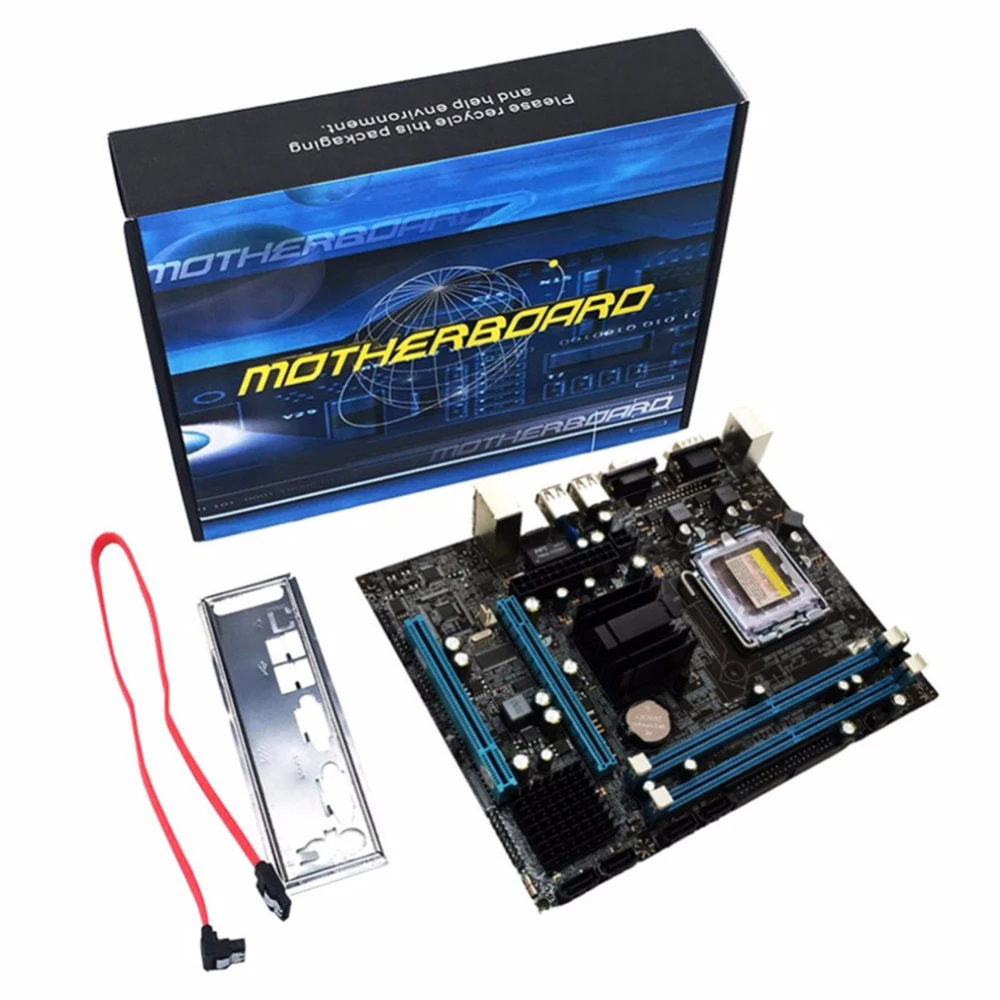

Package included:
1 x Motherboard
1 x Connecting cable
1 x Baffle

Notes:
1. Manual measuring, please allow 1 ~ 3mm error,thank you.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the picture.
